SMT or THT Connector: How to Choose

In the world of electronic design, selecting the right connector type is crucial for the success of your project. Two of the most common options are Surface-Mount Technology (SMT) and Through-Hole Technology (THT) connectors. Each has its own strengths and is suited to different applications. This guide will help you understand the differences between SMT and THT connectors and how to choose the best one for your needs.

What Are SMT and THT Connectors?

SMT Connectors

SMT connectors are mounted directly onto the surface of a printed circuit board (PCB). They are soldered to pads on the board’s surface, allowing for a compact and streamlined design.

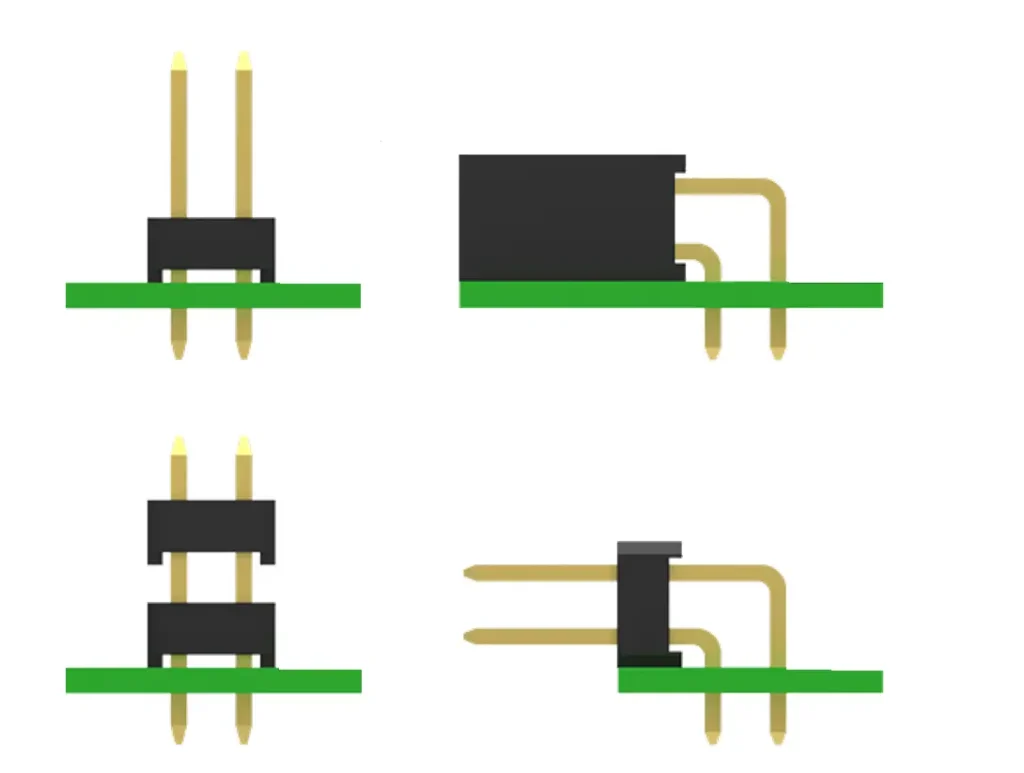

THT Connectors

THT connectors are inserted through holes drilled into the PCB and soldered on the opposite side. They have leads that pass through the board, providing a strong mechanical bond.

Key Differences Between SMT and THT

• Mounting Process:
  • SMT connectors are placed on the surface and soldered using reflow techniques, making them ideal for automated assembly.
  • THT connectors require manual or wave soldering, as their leads must pass through holes in the PCB.
• Size and Space:
  • SMT connectors are smaller and allow for higher component density, which is perfect for compact designs.
  • THT connectors take up more space due to the need for drilled holes and larger soldering pads.
• Durability and Mechanical Strength:
  • SMT connectors are less robust in high-stress environments because they rely on surface solder joints.
  • THT connectors offer superior mechanical strength, making them better suited for applications with vibration or mechanical stress.

Advantages and Disadvantages

Each connector type has its pros and cons:

• SMT Connectors:
  • Advantages: Compact size, ideal for high-density PCBs, automation-friendly, and often lower production costs for large volumes.
  • Disadvantages: Weaker mechanical strength, harder to repair, and may require more precise soldering techniques.
• THT Connectors:
  • Advantages: Strong mechanical bond, easier to inspect and repair, and better suited for high-reliability applications.
  • Disadvantages: Larger size, more labor-intensive assembly, and higher cost for high-volume production.

Factors to Consider When Choosing

When deciding between SMT and THT connectors, consider the following factors:

• Application Type:
  • For high-density, space-constrained designs (e.g., smartphones, wearables), SMT is often the better choice.
  • For high-vibration or mechanically demanding environments (e.g., automotive, industrial equipment), THT provides greater durability.
• Production Volume and Cost:
  • SMT is more cost-effective for large-scale production due to its compatibility with automated assembly.
  • THT may be more suitable for small-batch or prototype runs where manual assembly is feasible.
• Repairability and Maintenance:
  • If easy repair or rework is a priority, THT connectors are simpler to desolder and replace.
  • SMT connectors are more challenging to repair, often requiring specialized equipment.
• Compatibility:
  • Consider whether your design must integrate with existing systems or meet specific industry standards that favor one technology over the other.

Conclusion

Choosing between SMT and THT connectors depends on your project’s specific requirements. If space savings and high-volume production are key, SMT may be the way to go. However, for applications demanding durability and easy maintenance, THT is often the better option.

Take the time to assess your project’s needs, considering factors like application type, production scale, and long-term reliability. If you’re unsure which connector type is right for you, contact us for expert advice or custom solutions tailored to your project.
