Molex Micro-Fit VS Micro-Fit Plus

Molex connectors are a go-to choice in industries like automotive, datacom, and consumer electronics, prized for their reliability and compact design. Within the Micro-Fit family, the standard Micro-Fit and Micro-Fit Plus are two high-power options that often spark questions: what’s the difference, and are they interchangeable? In this post, we’ll explore their distinctions—including all available options, compatibility, and benefits—to help you pick the right connector for your project.

Overview of Molex Micro-Fit

The Molex Micro-Fit is a 3.00mm-pitch connector for wire-to-board and wire-to-wire applications, delivering up to 8.5A per circuit in a small package. It’s a favorite for space-limited designs like LED lighting, laptops, and automotive sensors. Available options include:

• Standard Terminals: Reliable, basic contacts.
• Reduced Mating Force (RMF) Terminals: Optional for easier mating and higher durability.
• Terminal Position Assurance (TPA): Optional secondary lock for terminal retention.
• Blind Mating: Supports misalignment for assembly ease.
• Positive Locking: Standard for secure connections.

At LDZY Electronics, we offer affordable, Molex-compatible alternatives to the standard Micro-Fit, perfect for cost-effective solutions.

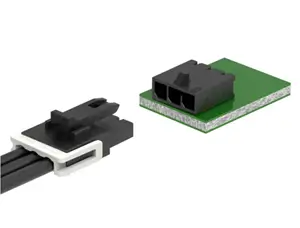

Overview of Molex Micro-Fit Plus

The Micro-Fit Plus, an upgraded version with the same 3.00mm pitch, boosts current capacity to 13A per circuit. It’s tailored for high-performance applications—such as automotive systems, datacom equipment, and medical devices—where power and reliability are key. Its options include:

• Terminal Position Assurance (TPA): Enhanced TPA for superior terminal seating.
• Blind Mating: Supports misalignment during assembly.
• Positive Locking: Standard for secure mating.
• Lower Mating Force: Built-in design for easier connections compared to standard Micro-Fit.

Are Micro-Fit and Micro-Fit Plus Intermatable?

No, they are not intermatable. The standard Micro-Fit and Micro-Fit Plus product families have different keying and polarization, preventing them from mating together. This distinction ensures proper connector selection for your specific design, avoiding compatibility issues.

Key Differences

So, what sets these two connectors apart? Here’s a clear comparison:

• Current Capacity: The standard Micro-Fit handles up to 8.5A, while the Micro-Fit Plus pushes the limit to 13A, making it ideal for power-hungry applications.
• Contact Design: Micro-Fit uses a dependable terminal design, but Micro-Fit Plus enhances this with TPA and a high-force interface, improving retention and mating integrity.
• Durability: The Plus variant, with TPA and higher mating cycles, offers superior resistance to vibration and wear, excelling in harsh environments. The standard Micro-Fit is reliable but less optimized for extreme conditions.
• Cost: Micro-Fit is the economical choice for cost-sensitive projects, while Micro-Fit Plus, with its advanced features, carries a higher price tag.

At LDZY Electronics, we specialize in alternatives to the standard Micro-Fit, providing a high-quality, affordable option for customers who don’t need the extra power or TPA of the Plus version.

Benefits of Micro-Fit Plus Over Standard Micro-Fit

Micro-Fit Plus shines with its higher current rating (13A) in a compact package, making it perfect for automotive or datacom applications where space and power matter. Its lower mating force also stands out, enhancing ergonomics by minimizing operator fatigue and discomfort—ideal for high-volume assembly or frequent connections. Combined with enhanced TPA and durability, it’s a robust choice for demanding environments.

Which One Should You Choose?

It depends on your needs:

• Micro-Fit: Great for moderate power (up to 8.5A) and budget-friendly projects. Add RMF terminals for higher durability or TPA for retention if required. Ideal for consumer electronics or simpler setups, with LDZY alternatives available.
• Micro-Fit Plus: Best for high-power (up to 13A), rugged applications needing frequent mating. Its lower mating force, higher current, and standard enhancements suit automotive, datacom, or industrial uses.

Consider your power needs, budget, and operating conditions.

Conclusion

In summary, the Molex Micro-Fit and Micro-Fit Plus cater to different needs: the standard version offers a cost-effective, reliable option for everyday applications, while the Plus version delivers enhanced power, durability, and TPA for more demanding projects. At LDZY Electronics, we provide top-tier alternatives to the Micro-Fit, ensuring you get the performance you need at a competitive price. Ready to get started? Contact us today for a quote or to discuss your custom connector needs!
