JST SH Connector VS molex PicoBlade Connector

March 12, 2024 / Sam Tang

This article will show you the difference between JST SH connector and Molex PicoBlade connector. And how to identify one from the two.

JST SH connector is NOT the same as Molex Picoblade connector. Don’t use their female and male interchangeably.

What is JST SH connector?

JST SH is a 1.0mm pitch wire-to-board connection system. It is only 1.0mm. There is no JST SH 1.25mm connector.
JST SH connector
JST SH Connector

What is Molex PicoBlade connector?

Molex PicoBlade is a 1.25mm pitch wire-to-board, wire-to-wire connection system.
A1250 Molex PicoBlade Connector
Molex PicoBlade Connector
Following is a comparison table of JST SH and Molex PicoBlade connectors.
attributes \ seriesJST SHMolex PicoBlade
pitch1.0mm1.25mm
circuit size2 - 20 pin2 - 15 pin
current rating1A1A
voltage rating50V125V
applicable wire (AWG)32 - 2832 - 26
configurationswbwb
single rowYESYES
dual rowNONO
locking featureNOYES
through hole typeNOYES
SMT typeYESYES
PicoBlade has wire to wire option, but SH doesn’t. PicoBlade has both through-hole type and SMT type headers. SH has only SMT type.

And PicoBlade has a locking feature that can strengthen the mating retention force. SH has no locking feature.

How to identify JST SH and Molex Picobalde connectors?

Usually, there is trouble identifying the female housings of the two series. These are three simple ways to identify them.

1. measure the pitch

JST SH connector is 1.0mm pitch. And molex PicoBlade is 1.25mm pitch. The problem is that you might need professional measuring equipment, as it’s almost impossible to tell the difference between 1.0mm and 1.25mm with the naked eye.

For how to measure connector pitch, click here.

2. measure the height

Measuring the height is pretty easy to do with a ruler.

The height of JST SH housing (with and without flange) is 5.0mm.

JST-SH-housing

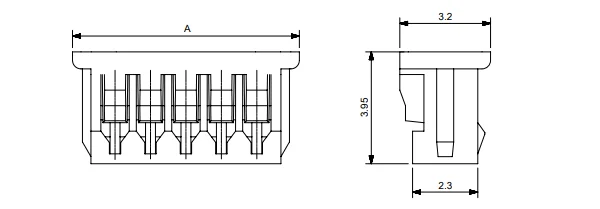

The height of molex PicoBlade housing is 3.95mm.
molex-PicoBlade-Housing

3. visual comparison

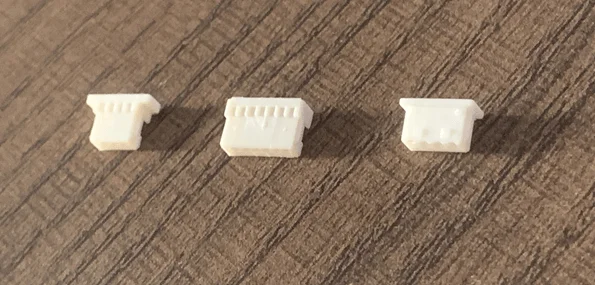

Check the following pictures of JST SH housing and molex PicoBalde housing (from left to right, SH housing with flange, SH housing without flange, PicoBlade housing – 51021).
front side
back side
You can see that the PicoBlade housing has two locks on the back side. Which SH doesn’t. This is the easiest way to distinguish the two visually.

Note that 2-pin and 3-pin of PicoBlade housing have only one lock. 4-15 pins have two locks.
molex-picoblade-lock-feature

LDZY Electronics offers both equivalents of JST SH (A1001) and molex PicoBlade (A1250). Click for more information.

Please leave a comment if you have any questions, and share this article if you find it helpful.
