Tin plating is a critical choice in electronic connectors, impacting everything from reliability to aesthetics. At LDZY Electronics, we know that selecting the right finish—bright tin or matte tin—can make or break your project. In this post, we’ll break down the essentials of these two plating options to help you decide what’s best for your connectors.
Bright tin plating delivers a shiny, smooth, and eye-catching finish, thanks to organic brighteners added during the electroplating process. These additives create a fine-grain structure, making it ideal for connectors where appearance matters, like exposed pin headers or cold-pressed terminals. However, the higher organic content can compromise performance in certain applications. It’s a popular choice for press-fit connectors or parts needing low insertion force.
Matte tin plating, on the other hand, offers a dull, non-reflective finish with a rougher texture. It skips the brighteners, keeping organic content low and resulting in larger, denser grains. This makes it a go-to for connectors requiring robust soldering, such as wire-to-board setups or SMT components.

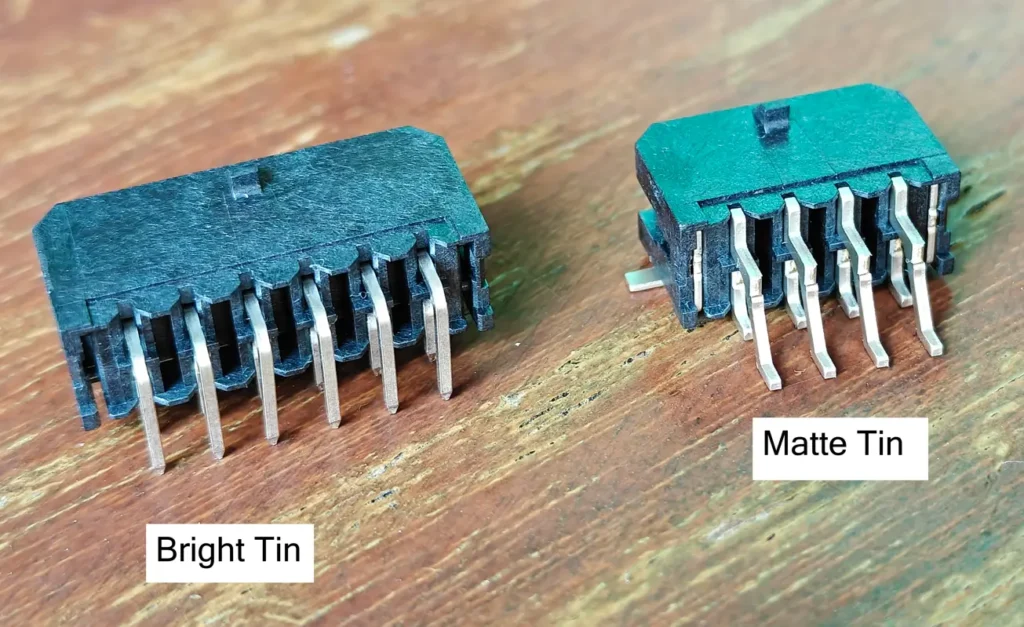

Following is a picture of molex micro fit through hole header (bright tin plating) and SMT header (matte tin plating).
Here’s a quick comparison of bright tin and matte tin plating:
| Feature | Bright Tin | Matte Tin |
|---|---|---|
| Appearance | Shiny, smooth, glossy | Dull, matte, non-reflective |
| Solderability | Weaker; prone to de-wetting and whiskers | Superior; stable joints, low whisker risk |
| Temperature Resistance | Oxidizes or discolors at high heat | Handles high heat without issues |
| Cost & Applications | Cheaper; suits aesthetics, low-friction | Pricier; ideal for reliability (e.g., automotive) |
| Other Factors | Resists fingerprints, may darken after baking | Better oxidation resistance, may blacken with friction |
